Prostack Tracked Conveyors
ProStack Tracked Conveyors span from 50ft (15m) to 100ft (31m) in length. Portable and radial stockpiling conveyors are available in various sizes to suit a variety of applications. Each machine is easily transported thanks to a compact yet robust design.

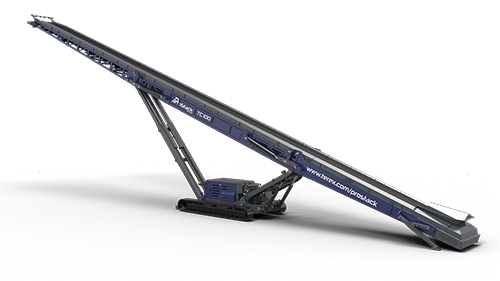

TC 100
- High Capacity up to 600tph (661 US tph)
- CAT Engine Tier 3 CAT C4.4
- Max Feed size 150mm (6’)
- Multiple hopper options
- Hydraulic Feed in Height Adjustment

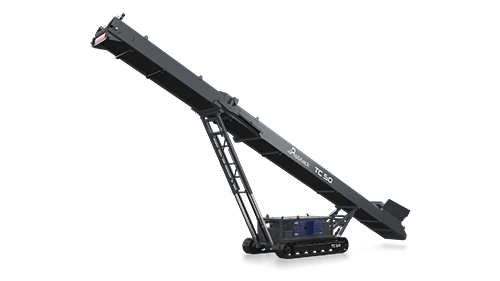

TC 50
- Transport L:11.87m (38’-11”) W: 2.24m (7’-4”) H: 2.69m (8’-10)
- Max Tonnage – 400-500 TPH
- 2.5m heavy duty crawler track 400mm pads
- Conveyor width – 900mm (36”)
- Tail drum diameter – 275mm (11”)

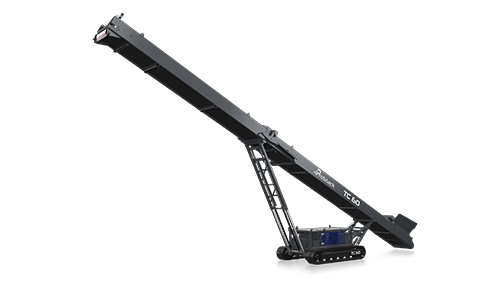

TC 60
- Max Discharge Height – 26’’9’
- Transport L:11.87m (36’-11”) W: 2.24, (7’-4”) H: 2.69m (8’-10”)
- Max Tonnage – 400-500 TPH
- Max Feed Size – 150mm
- Total Weight – 9000kg

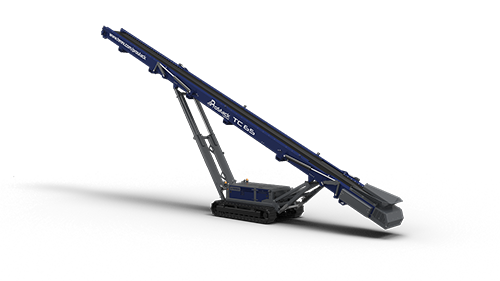

TC 65
- Tail Drum Dia – 270mm (10.6”)
- Motor Size – 800cc
- Discharge Height – 7.58m (24’ 10”)
- Max Belt Speed -136m/m
- Engine Deutz TD 2.9 L04

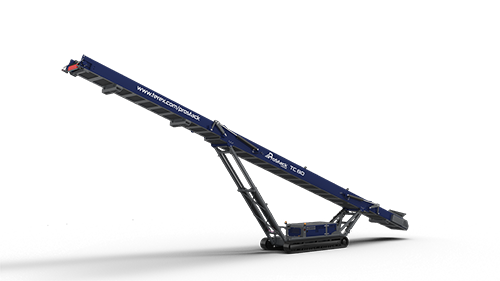

TC 80
- Total Weight 16,750kg (36,927 lbs)
- Drive Drum Dia- 286mm (10.6”)
- Max Belt Speed – 136m/m
- Discharge Height – 10.41m (34’ 1”)
- Tracks Shoe Width – 400mm (1’ 4”)

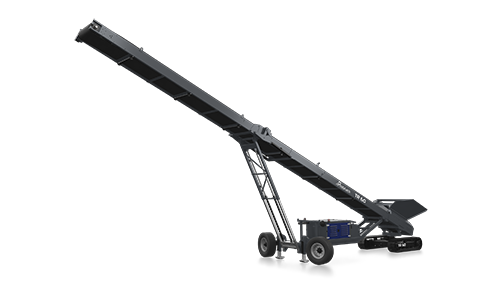

TR 60
- Transport L: 11.99m (39’-4”) W: 2.23m (7’-4”) H: 2.81m (9’-2”)
- Max Tonnage – 400-500 TPH
- Total Weight – 8000kg
- Conveyor width – 900mm (36”)
- Drive Drum Diameter – 344mm (14”)

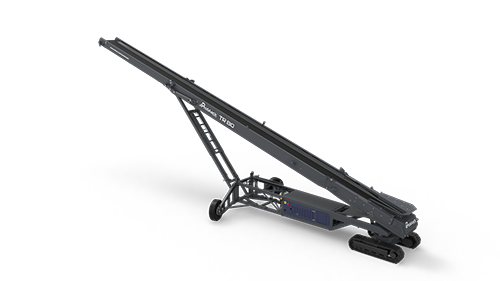

TR 80
- CAT Engine Tier 3 CAT C4.4
- Max Belt Speed – 124m/m
- Motor size – 630cc
- Drive Drum Dia – 340mm (13.4”)
- Discharge Conveyor Width – 1050mm (42”)

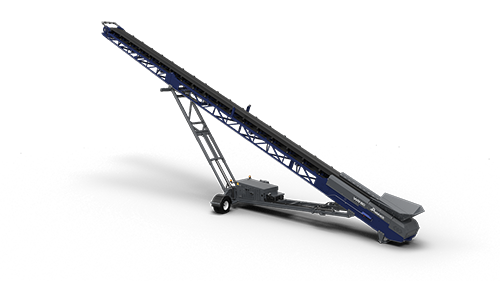

WR 80
- Total Weight – 9000kg (19,842 lbs)
- Transport Road L: 16.17m (52’ 11”) H: 3.36m (11’) W: 2.5m (8’ 3”)
- Min Feed Height – 1534mm (5’)
- Discharge Radius – 20.958m (68’ 9”)
