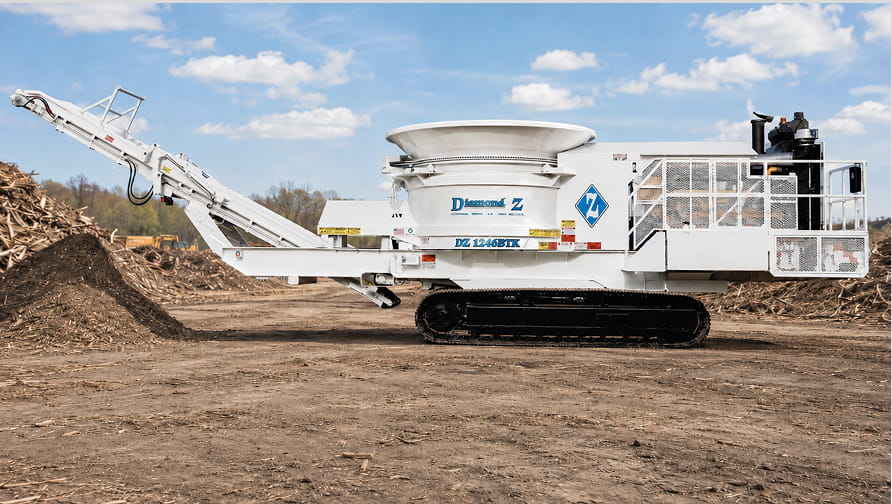

Diamond Z Tub Grinders


Diamond Z tub grinders are designed for large diameter material high-volume land-clearing and wood recycling operations.

Tub grinders are typically used mainly for primary grinding of raw materials and are not capable of efficiently achieving finished product specs from many forms of wood fiber and other raw materials. Tub grinders typically perform better with larger diameter material such as stump and root balls and brushier material. The large tub infeed opening makes it more efficient to get larger and bulkier items down into the hammermill and are easier to load with large bucket loaders.

1248B / 1248BTK
1248B / 1248BTK
  • Horsepower 755
  • Transmission Fluid Coupling Drive
  • Length 32’x11”
  • Height 12’x4”
  • Width 11’x11”
  • Weight 53,000 Lbs
  • Screen Area 3,013 Sq In
  • Production up to 60 TPH
  • Radio remote control
  • Super screw belt lacing & auxiliary hydraulic pump.
1463B / 1463BT
1463B / 1463BT
  • Horsepower 1,050-1,200
  • Transmission Fluid Coupling Drive
  • Length 48’x2”
  • Height 13’ x 10”
  • Width 11’x11”
  • Weight 100,000 LBS
  • Screen area 6,795 Sq In
  • Production up to 150 TPH
  • Choice of screens
  • Fluid coupling mill drive
8000 / 8000TKT
8000 / 8000TKT
  • Horsepower 1,050
  • Transmission Fluid Coupling Drive
  • Length 40’x1”
  • Height 13’x7”
  • Width 11’x11”
  • Weight 77,000 Lbs
  • Screen Area 4,800 Sq In
  • Production up to 120 TPH
  • Available wheeled or tracked, diesel or electric.
