Prostack Telescopic Conveyors

ProStack’s Telescopic Conveyor range features five specifications that are capable of 270° of radial movement and up to 22° working angle. ProStack’s ability to tailor our Telescopic Conveyors to suit any job is what sets us apart. Mobility, Conveyor Belt, Radio Remote Control and many other options including Roller and Pulley Lagging and Dust Containment systems are all available. With a multitude of tried and tested options available you can be sure your demands will be met.

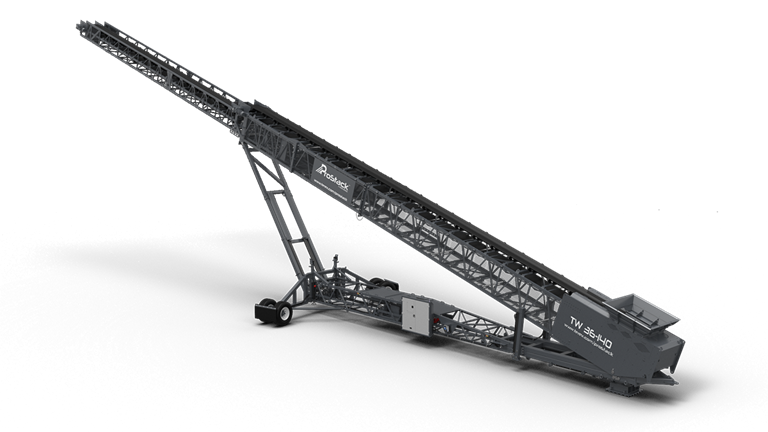

TW 36-140
TW 36-140
  • Max. Conveyor Length – 42.45m (139’3”)
  • Belt Width – 900mm (36”)
  • Min. Discharge Height – 4.2m (13’9”)
  • Max. Discharge Height – 14.4m (47’2”)
  • Production Capacity – 0-2000tph (2204 stph)

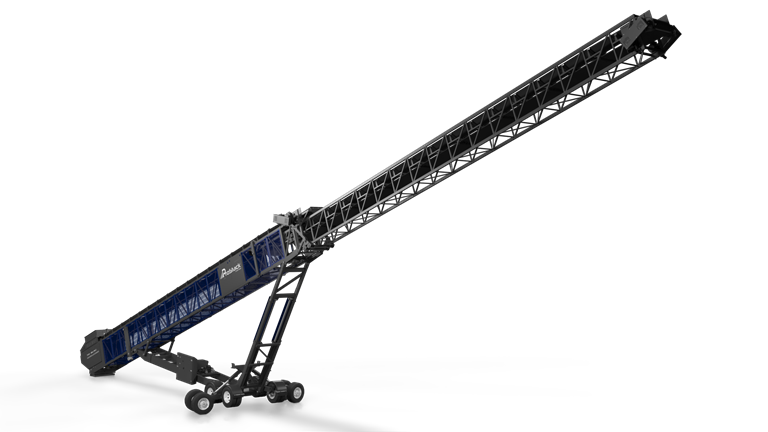

TW 36-150
TW 36-150
  • Max. Conveyor Length – 46m (150’)
  • Belt Width – 900mm (36”)
  • Min. Discharge Height – 4.2m (13’9”)
  • Max. Discharge Height – 15.1m (49’5”)
  • Production Capacity – 0-2000tph (2204 stph)

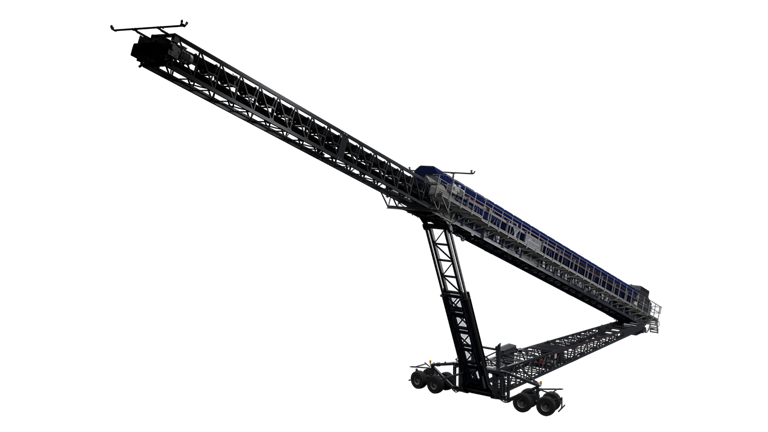

TW 42-170
TW 42-170
  • Max. Conveyor Length – 51.4m (168’10”)
  • Belt Width – 900mm (36”), 1050mm (42”) & 120mm (48”)
  • Min. Discharge Height – 7.6m (25’)
  • Max. Discharge Height – 20.3m (66’9”)
  • Production Capacity – 0-2000tph (2204 stph)
TW 42-190
TW 42-190
  • Max. Conveyor Length – 57.9m (190’2”)
  • Belt Width – 1050mm (42”) – 1200mm (48”)
  • Min. Discharge Height – 8.4m (27’ 7”)
  • Max. Discharge Height – 22.8m (74’ 9”)
  • Production Capacity – 0-2000tph (2204 stph)
