Diamond Z Horizontal Grinder
Diamond Z horizontals are designed for processing brush, yard waste, clearing debris, storm debris, C&D waste, other mixed woody feedstocks, and asphalt shingles into salable products.
Horizontal grinders offer many advantages over tub grinders, including superior particle size control, enhanced efficiency, and greater versatility. Horizontal grinders allow operators to more efficiently achieve small particle sizes required for boiler fuel, landscape mulch, animal bedding, and other finished products. Horizontal grinders generally process longer, pre-organized material typically found in land-clearing operations better. This is because of the long infeed opening which reduces the need to shorten material significantly before grinding.
DZH3000/DZH3000TKT
- Horsepower 580
- Transmission Fluid Coupling Drive.
- Length 37’x1”
- Height 13’x3”
- Width 10’x5”
- Weight 63,000 LBS
- Screen Area 3,146 Sq In
- Production up to 65 TPH
- Fluid coupling mill drive.
DZH4000 / DZH4000TKT
- Power CAT C18 755 HP Tier 4
- Transmission Fluid coupling drive
- Transport dimensions (LxWxH) 42’-0” x 9’-9” x 13’-7”
- Operating dimensions (LxWxH) 61’-0” x 10’-0” x 18’-0”
- Weight 78,500LBS
- Mill Feed Opening (WxH) 54.5”x48”
- Screen Area 3,800 Sq In
- Production Up to 120 TPH/475 YPH
- All track mounted machines come with 24” wide pads, other options available.
DZH5500 / DZH5500TKT
- Power CAT C-27 1,050 HP Tier IV Final.
- Transmission Fluid coupling mill drive.
- Length 52’X2”
- Height 13’x0”
- Width 11’x4” (W/transporter), 10’x6” (w/o)
- Weight 96,000 LBS, 106,000 w/transport
- Screen area3,800 Sq In
- Remote control
- Super screw belt lacing
- Available wheeled or tracked diesel or electric

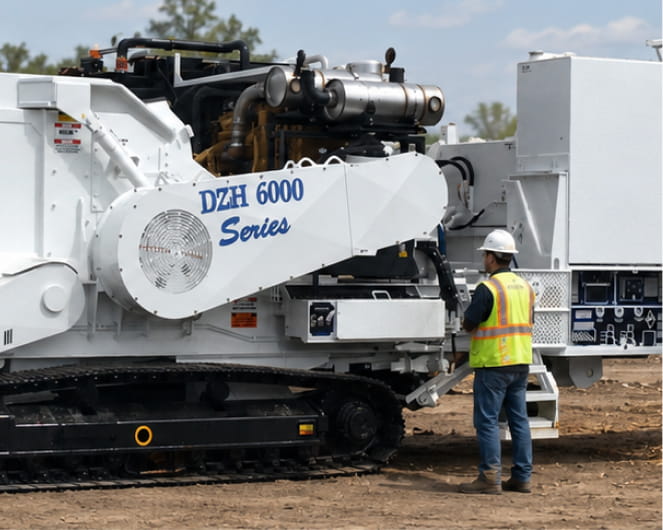

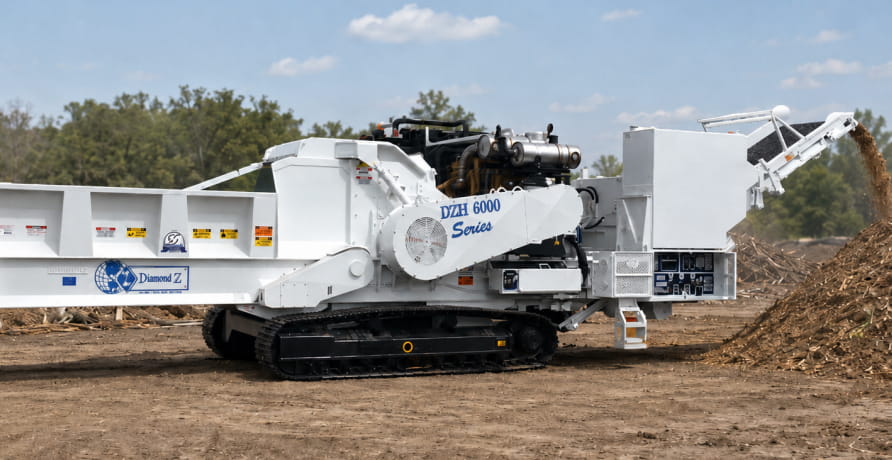

DZH6000 / DZH6000TKT
- Horsepower 1,050
- Transmission Fluid coupling drive
- Length 44’x1”
- Height 13’x10”
- Width 11’x11”
- Weight 95,000 LBS
- Screen area 4,320 Sq In
- Production up to 131 TPH
- Radio remote control
- Fluid coupling mill drive
- All track mounted machines come with 24” wide pads, other options available.
DZH7000 / DZH7000TKT
- Horsepower 1,050-1,200
- Transmission Fluid coupling drive.
- Length 46’ x 8”
- Height 13’x 10”
- Width 11’x 11”
- Weight 105,000LBS
- Screen area 5,760 Sq. In
- Production up to 175 TPH
- Fluid coupling mill drive
- Reversing Fan
- Radio remote control
- Super screw belt lacing
